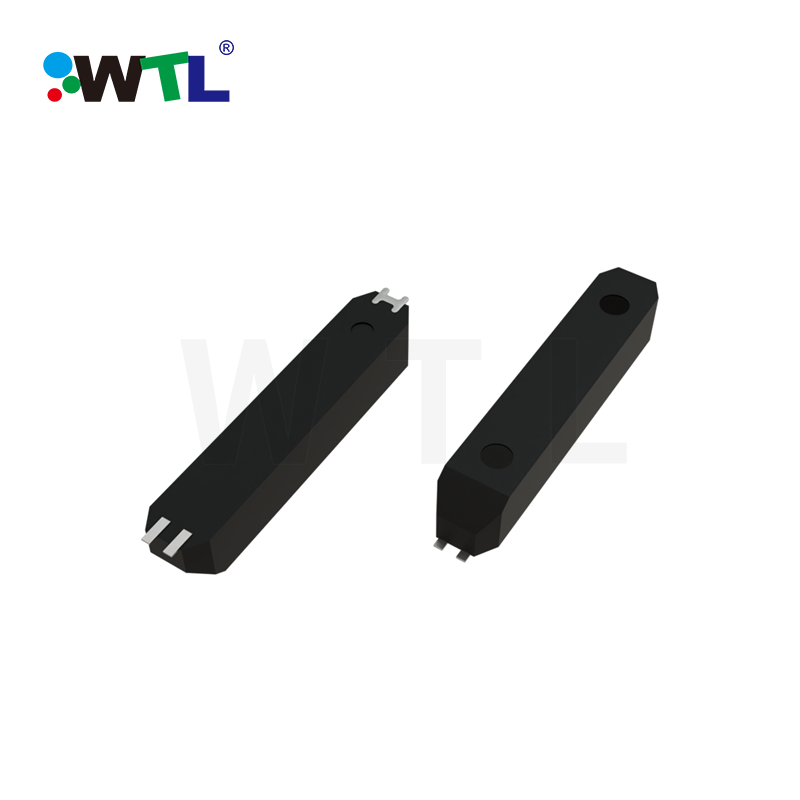

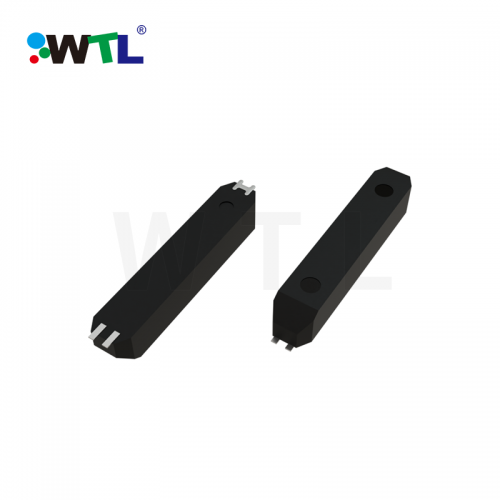

WX4 6.9*1.4mm SMD 32.768KHz 12.5pF 20ppm tuning fork crystal
Tuning fork
KEY_FEATURES:
- Ultra small size 6.9x1.4x1.3 mm
- High reliability environmental performance
- High frequency stability and high precision
- Designed for automatic mounting and reflow soldering
- RoHS Compliant / Pb Free
WX4.pdfSale
¥2.40~3.00
IN_STOCK
LADDER_PRICE
-
FREE_SHIPPINGFREE_SHIPPING_DES
-
SUPPORT_TIMESUPPORT_TIME_DES
-
SAFETYSAFETY_DES
-
HOT_OFFERSHOT_OFFERS_DES
Series
WX4
Package/Case
SMD6914
Frequency
32.768 KHz
CL
12.5 pF
Frequency Tolerance （25±3℃）
±20 ppm
Operating Temperature
-40+85 ℃

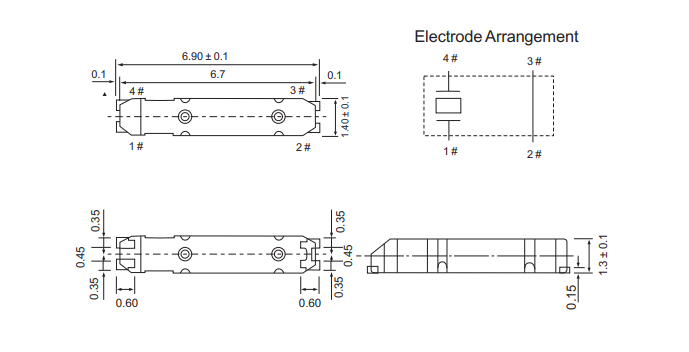

L x W/Size
6.9*1.4 mm
Height
1.3 mm
Drive Level
0.1~1 μW
Shunt Capacitance(C0)
0.9 pF
Storage Temperature
-55~+125 ℃
Aging
±3.0 ppm/year
Lead Quantity
2 Pad
Encapsulation technology
Seam Sealing
Package type
Tape/Reel
MPQ
3000 pcs
Mounting type
SMT
Pb Free
Yes
Application level
Consumer
Partlife Cycle Code
Active
Material
Quartz Crystal
Insulation Resistance
500 MΩ @ DC100V
MFG
WTL International Limited
Country of Origin
China
Turnover Temperature
25±5 ℃
Temperature coefficient
(-0.033±10%) x 10-6/°C 2
