TX7 7.0*5.0mm SMD 12.500MHz 18pF ±30ppm quartz crystal

IN_STOCK
Quartz crystal
KEY_FEATURES:
  • FREE_SHIPPING
    FREE_SHIPPING_DES
  • SUPPORT_TIME
    SUPPORT_TIME_DES
  • SAFETY
    SAFETY_DES
  • HOT_OFFERS
    HOT_OFFERS_DES
Series
TX7
Package/Case
SMD7050
Frequency
12.500000 MHz
CL
18 pF
Frequency Tolerance (25±3℃)
±30 ppm
Operating Temperature
-40+85 ℃
Frequency Stability vs.Temperature
±30 ppm

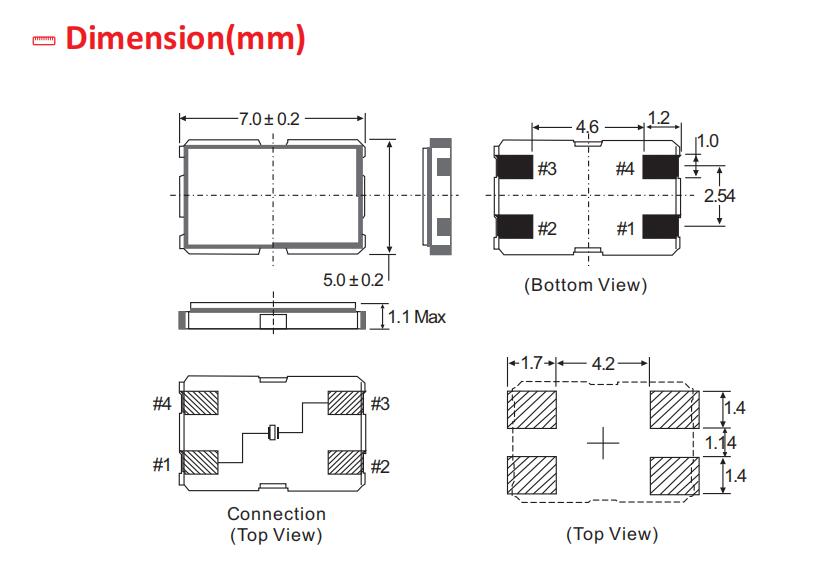

L x W/Size
7.0*5.0 mm
E.S.R
60 to 100 Ω
Shunt Capacitance(C0)
5.0 pF
Storage Temperature
-55~+125 ℃
Drive Level
1~100 μW
Aging
±3.0 ppm/year
Lead Quantity
4 Pin
Encapsulation technology
Seam Sealing
MPQ
1000 pcs
Package type
Tape/Reel
Mounting type
SMT
Pb Free
Yes
Application level
Consumer
Partlife Cycle Code
Active
Material
Quartz Crystal
Country of Origin
China
MFG
WTL International Limited
Special Requirement
No Special
Features
SMD type crystal units
High precision and high frequency stability
Excellent heat resistance and environmental characteristics
Designed for automatic mounting and reflow soldering
RoHS Compliant / Pb Free
