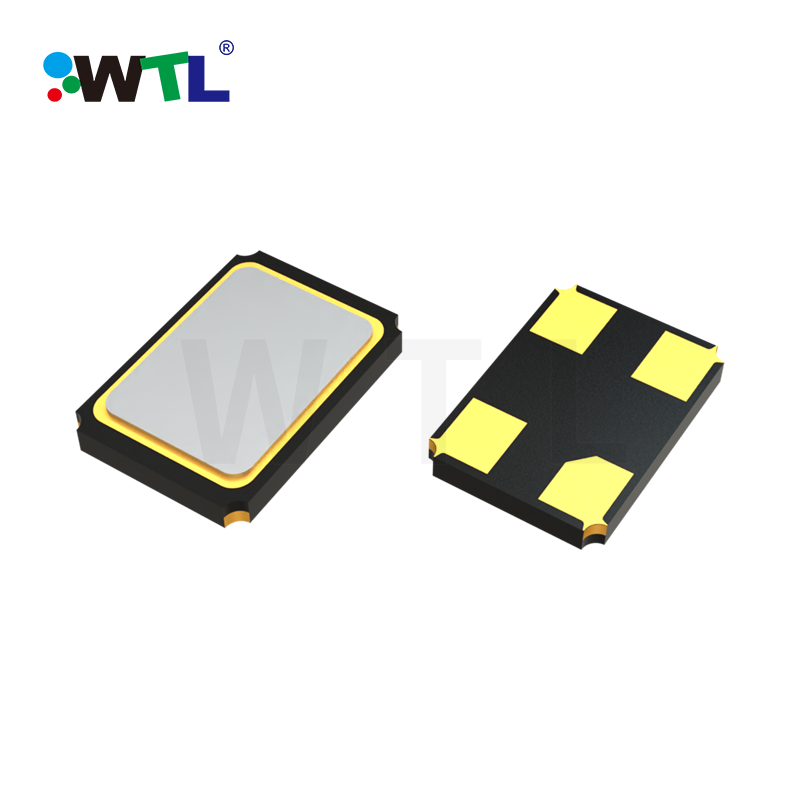

TX7 7.0*5.0mm SMD 6.000MHz 20pF ±10ppm quartz crystal
TX7.pdfSale
¥3.60
In Stock
Ladder Price
-
Free ShippingFor orders from ￥300
-
Support 24/7Call us anytime
-
100% SafetyOnly secure payments
-
Hot OffersDiscounts up to 20%
Series
TX2
Package/Case
SMD7050
Frequency
6.000000 MHz
CL
20 pF
Frequency Tolerance （25±3℃）
±10 ppm
Operating Temperature
-40+85 ℃
Frequency Stability vs.Temperature
±30 ppm

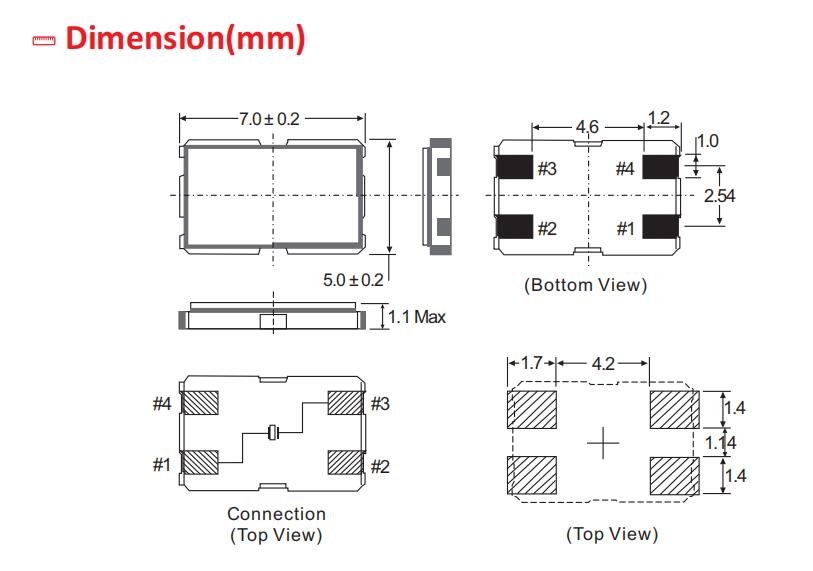

L x W/Size
7.0*5.0 mm
E.S.R
60 to 100 Ω
Shunt Capacitance(C0)
5.0 pF
Storage Temperature
-55~+125 ℃
Drive Level
1~100 μW
Aging
±3.0 ppm/year
Lead Quantity
4 Pin
Encapsulation technology
Seam Sealing
MPQ
1000 pcs
Package type
Tape/Reel
Mounting type
SMT
Pb Free
Yes
Application level
Consumer
Partlife Cycle Code
Active
Material
Quartz Crystal
Country of Origin
China
MFG
WTL International Limited
Special Requirement
No Special
Features
SMD type crystal units
High precision and high frequency stability
Excellent heat resistance and environmental characteristics
Designed for automatic mounting and reflow soldering
RoHS Compliant / Pb Free
