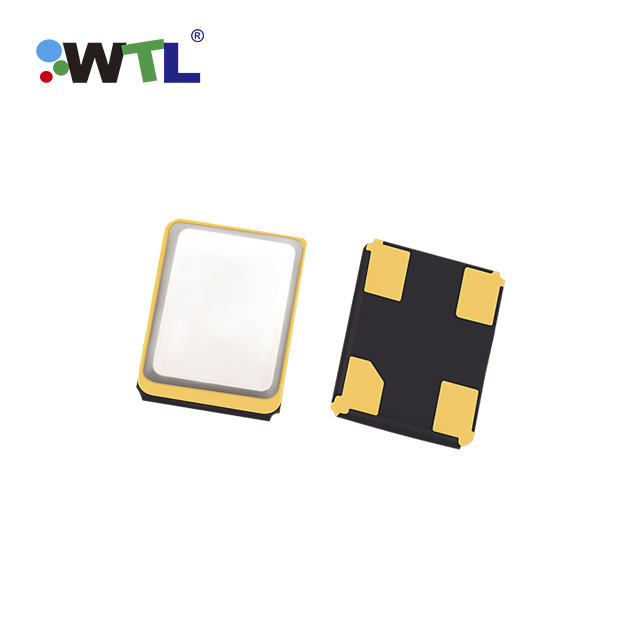

TX8 1.6*1.2mm SMD 32MHz 8pF 10ppm Quartz Crystal
TX8.pdfSale
¥1.46
IN_STOCK
LADDER_PRICE
-
FREE_SHIPPINGFREE_SHIPPING_DES
-
SUPPORT_TIMESUPPORT_TIME_DES
-
SAFETYSAFETY_DES
-
HOT_OFFERSHOT_OFFERS_DES
Series
TX8
Package/Case
SMD1612
Frequency
32.000000 MHz
CL
8.0 pF
Frequency Tolerance （25±3℃）Min
-10 ppm
Frequency Tolerance（25±3℃）Max
+10 ppm
Operating Temperature Min
-20 ℃
Operating Temperature Max
+70 ℃
Frequency Stability vs.Temperature Min
-10 ppm
Frequency Stability vs.Temperature Max
+10 ppm
L x W/Size
1.6*1.2 mm
Height
0.35 mm
Cut Type
AT Cut
Overtone
Fundamental
E.S.R
80 Ω
Shunt Capacitance(C0)
3.0 pF
Storage Temperature
-55~+125℃ ℃
Output Wave
Sine Wave
Drive Level
1~200 μW
Aging
±3.0 ppm/year
Lead Quantity
4 Pin
Encapsulation technology
Seam Sealing
MPQ
3000 pcs
Package type
Tape/Reel
Mounting type
SMT
Pb Free
Yes
Application level
Consumer
Partlife Cycle Code
Active
Material
Quartz Crystal
Insulation Resistance
500 MΩ @ DC100V
Country of Origin
China
MFG
WTL International Limited
Special Requirement
No Special
