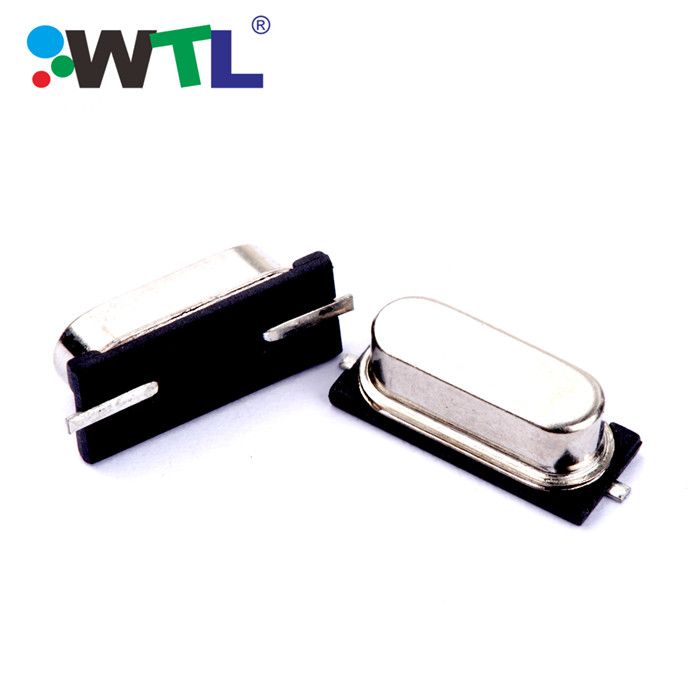

WX7 49SMD 12MHz 20pF 30ppm Quartz Crystal
WX7.pdfSale
¥0.42
IN_STOCK
LADDER_PRICE
-
FREE_SHIPPINGFREE_SHIPPING_DES
-
SUPPORT_TIMESUPPORT_TIME_DES
-
SAFETYSAFETY_DES
-
HOT_OFFERSHOT_OFFERS_DES
Series
WX7
Package/Case
49SMD
Frequency
12.000000 MHz
CL
20 pF
Frequency Tolerance （25±3℃）Min
-30 ppm
Frequency Tolerance（25±3℃）Max
+30 ppm
Operating Temperature Min
-20 ℃
Operating Temperature Max
+70 ℃
Frequency Stability vs.Temperature Min
-30 ppm
Frequency Stability vs.Temperature Max
+30 ppm
L x W/Size
12.7*4.8 mm
Height
3.8 mm
Cut Type
AT Cut
Overtone
Fundamental
E.S.R
50 Ω
Shunt Capacitance(C0)
7.0 pF
Storage Temperature
-55~+125℃ ℃
Output Wave
Sine Wave
Drive Level
1~500 μW
Aging
±3.0 ppm/year
Lead Quantity
2 Pin
Encapsulation technology
Metal Welded
MPQ
1000 pcs
Package type
Tape/Reel
Mounting type
SMT
Pb Free
Yes
Application level
Consumer
Partlife Cycle Code
Active
Material
Quartz Crystal
Insulation Resistance
500 MΩ @ DC100V
Country of Origin
China
MFG
WTL International Limited
Special Requirement
No Special
