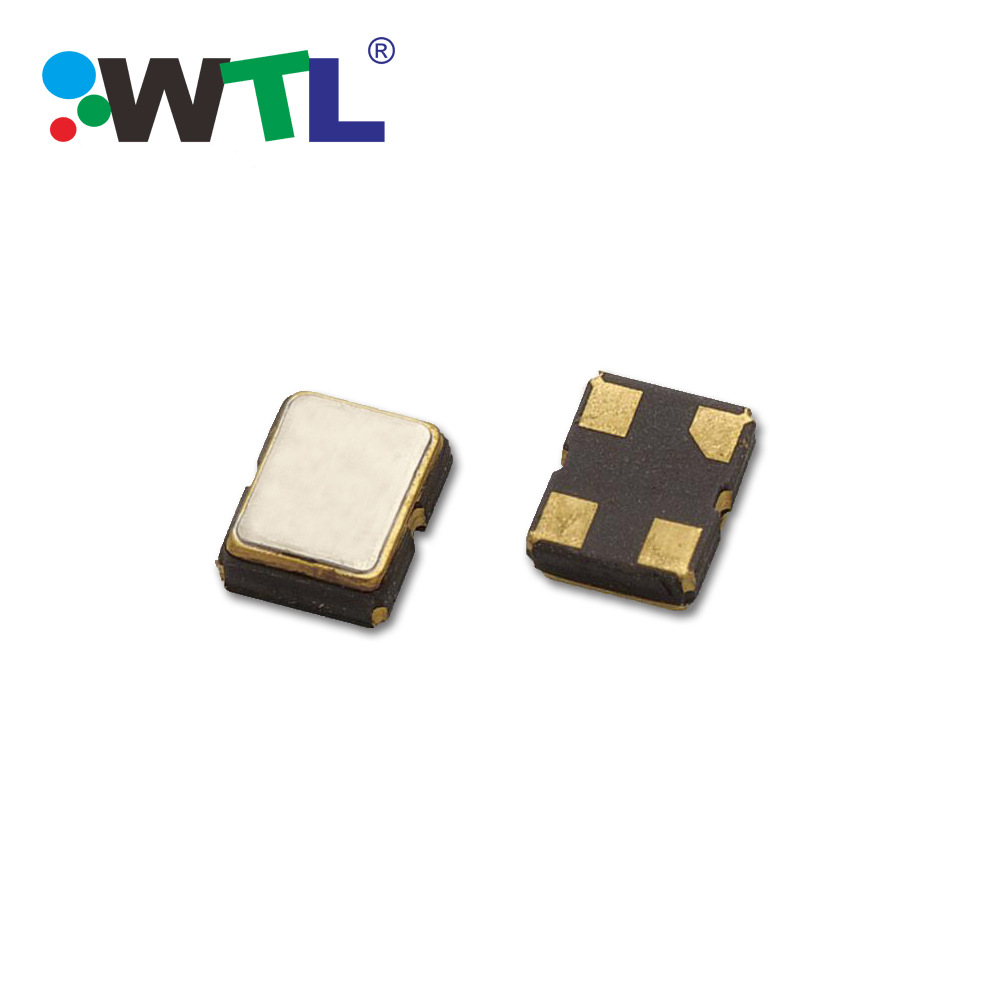

TC1 2.0*1.6mm SMD OSC 24MHz 3.3V 50ppm Crystal Oscillator
WTL TC1 59.pdfSale
¥3.10
IN_STOCK
LADDER_PRICE
-
FREE_SHIPPINGFREE_SHIPPING_DES
-
SUPPORT_TIMESUPPORT_TIME_DES
-
SAFETYSAFETY_DES
-
HOT_OFFERSHOT_OFFERS_DES
Series
TC1
Package/Case
SMD2016
Frequency
24.000000 MHz
Frequency Tolerance （25±3℃）Min
-50 ppm
Frequency Tolerance（25±3℃）Max
+50 ppm
Operating Temperature Min
-40 ℃
Operating Temperature Max
+85 ℃
Frequency Stability vs.Temperature Min
-50 ppm
Frequency Stability vs.Temperature Max
+50 ppm
L x W/Size
2.0 x 1.6 mm
Height
0.75 mm
Supply Voltage
3.3 V
Output type
CMOS
Output Load
15 pF
Storage Temperature
-55~+125 ℃
Current Consumption
7/10/15 mA
Control Function
With Tri-State
Duty Cycle
45/55 %
Drive Ability
Default(datasheet limits)
Output Wave
Square Wave
Aging
±3.0 ppm/year
Lead Quantity
4 Pin
Encapsulation technology
Seam Sealing
Package type
Tape/Reel
MPQ
3000 pcs
Country of Origin
China
MFG
WTL International Limited
Mounting type
SMT
Pb Free
Yes
Application level
Consumer
Partlife Cycle Code
Active
Material
Quartz Crystal
Programmable frequency
1.5~50 MHz
Special Requirement
No Special
