TX9 1.2*1.0mm SMD 32.000MHz 8pF ±20ppm quartz crystal

IN_STOCK
Quartz crystal
KEY_FEATURES:
  • FREE_SHIPPING
    FREE_SHIPPING_DES
  • SUPPORT_TIME
    SUPPORT_TIME_DES
  • SAFETY
    SAFETY_DES
  • HOT_OFFERS
    HOT_OFFERS_DES
Series
TX9
Package/Case
SMD1210
Frequency
32.000000 MHz
CL
8 pF
Frequency Tolerance (25±3℃)
±20 ppm
Operating Temperature
-40+85 ℃
Frequency Stability vs.Temperature
±30 ppm

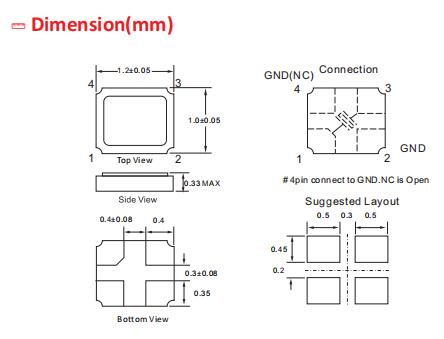

L x W/Size
1.2*1.0 mm
Height
0.33 mm
E.S.R
32 to 96 Ω
Shunt Capacitance(C0)
3.0 pF
Storage Temperature
-55~+125 ℃
Drive Level
50 max μW
Aging
±5.0 ppm/year
Lead Quantity
4 Pad
Encapsulation technology
Seam Sealing
MPQ
3000 pcs
Package type
Tape/Reel
Mounting type
SMT
Pb Free
Yes
Application level
Consumer
Partlife Cycle Code
Active
Material
Quartz Crystal
Country of Origin
China
MFG
WTL International Limited
Special Requirement
No Special

Feature

Size 1.2 × 1.0, ultra miniature and lightweight SMD crystal with a low profile of 0.33mm Seam with vacuum Sealed for Ultra-small size High precision and high reliability Automatic mounting is possible Reflow is possible RoHS Compliant / Pb Free
