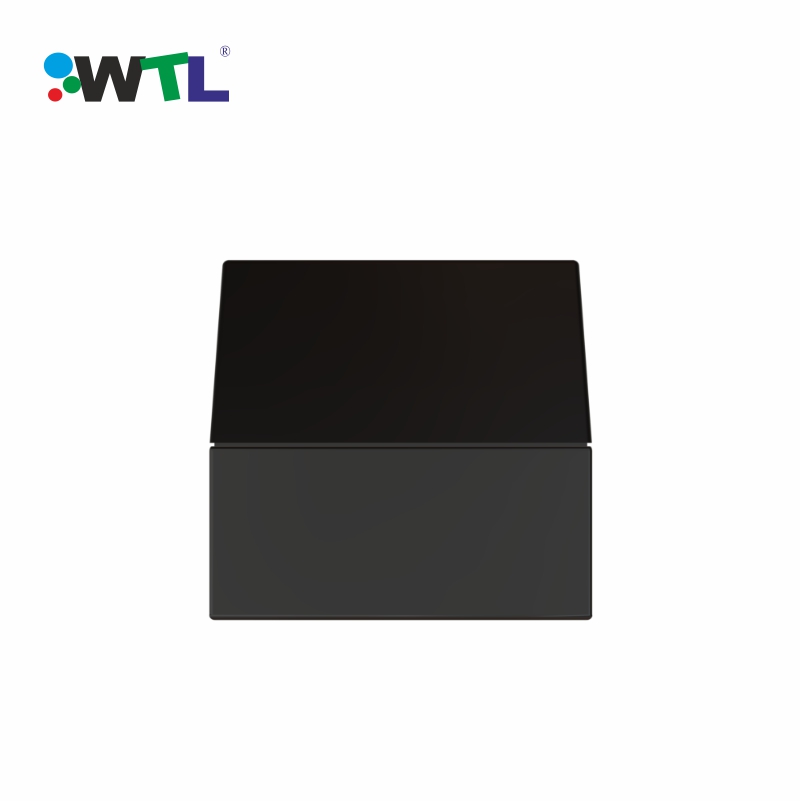

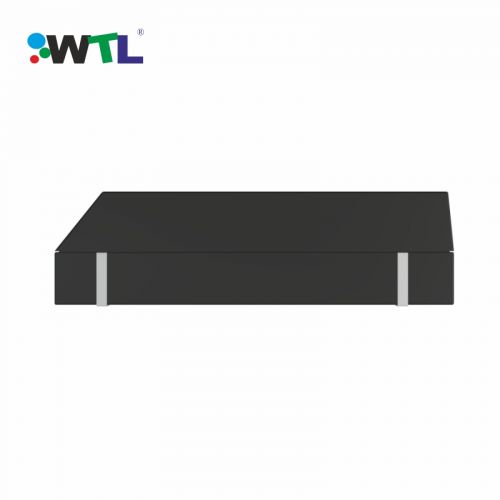

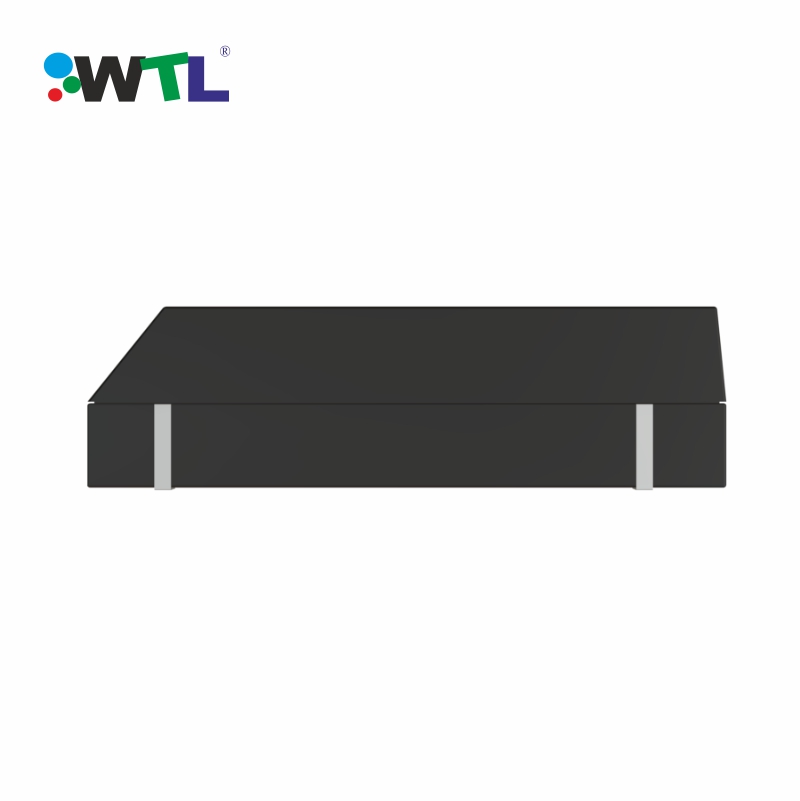

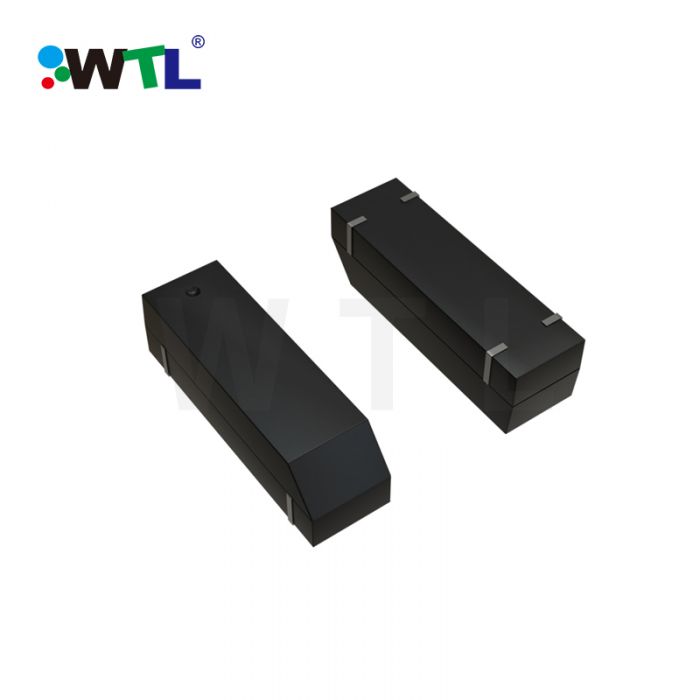

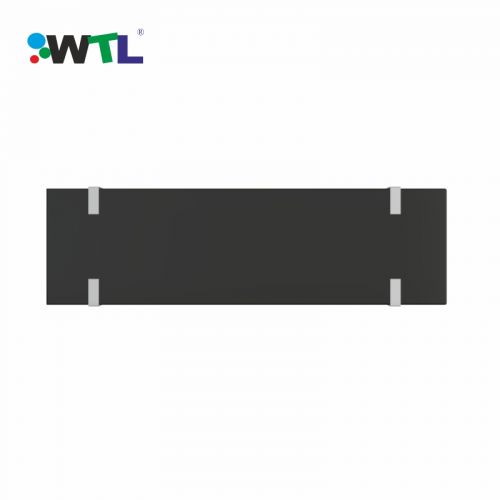

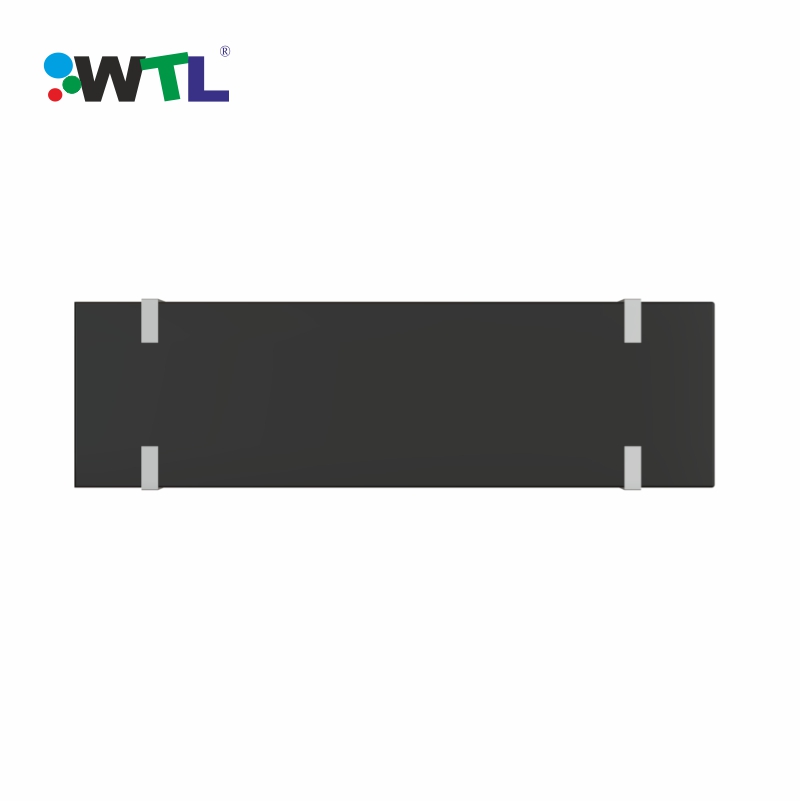

WX3 3.8*8mm SMD 32.768KHz 6pF ±20ppm tuning fork crystal

IN_STOCK
Tuning fork crystal
KEY_FEATURES:
  • FREE_SHIPPING
    FREE_SHIPPING_DES
  • SUPPORT_TIME
    SUPPORT_TIME_DES
  • SAFETY
    SAFETY_DES
  • HOT_OFFERS
    HOT_OFFERS_DES
Series
WX3
Package/Case
SMD3880
Frequency
32.768 KHz
CL
6 pF
Frequency Tolerance (25±3℃)
±20 ppm
Operating Temperature
-40+85 ℃

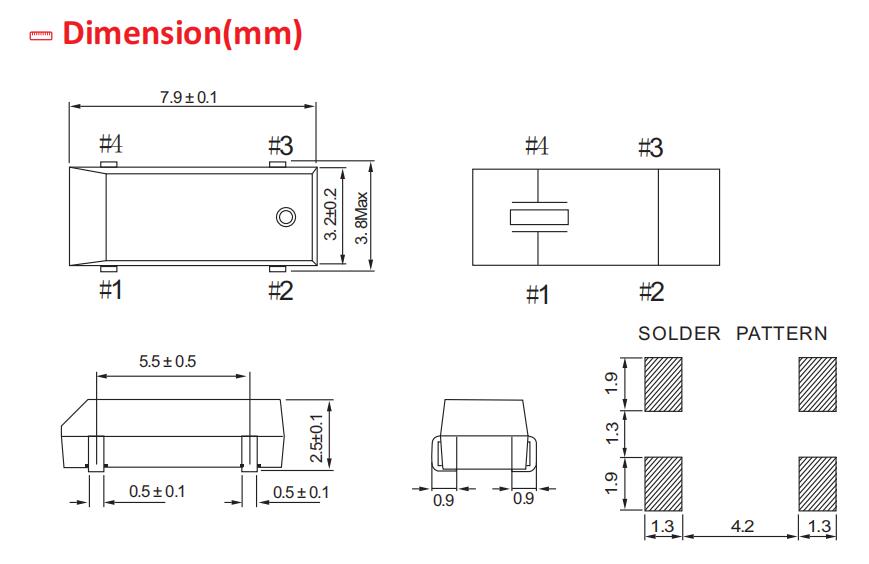

L x W/Size
3.8*8.0 mm
Height
2.5 mm
Drive Level
0.1~1 μW
Shunt Capacitance(C0)
2.0 pF
Storage Temperature
-55~+125℃ ℃
Aging
±3.0 or ±5.0 ppm/year
Lead Quantity
4 Pad
Encapsulation technology
Seam Sealing
Package type
Tape/Reel
MPQ
3000 pcs
Mounting type
SMT
Pb Free
Yes
Application level
Consumer
Partlife Cycle Code
Active
Material
Quartz Crystal
Insulation Resistance
500 MΩ @ DC100V
MFG
WTL International Limited
Country of Origin
China
Turnover Temperature
25±5 ℃
Temperature coefficient
(-0.036±10%) x 10-6/°C 2
Features
Wide frequency range
Designed for automatic mounting and reflow soldering
Higher frequency available and lower equivalent series resistance
RoHS Compliant / Pb Free
