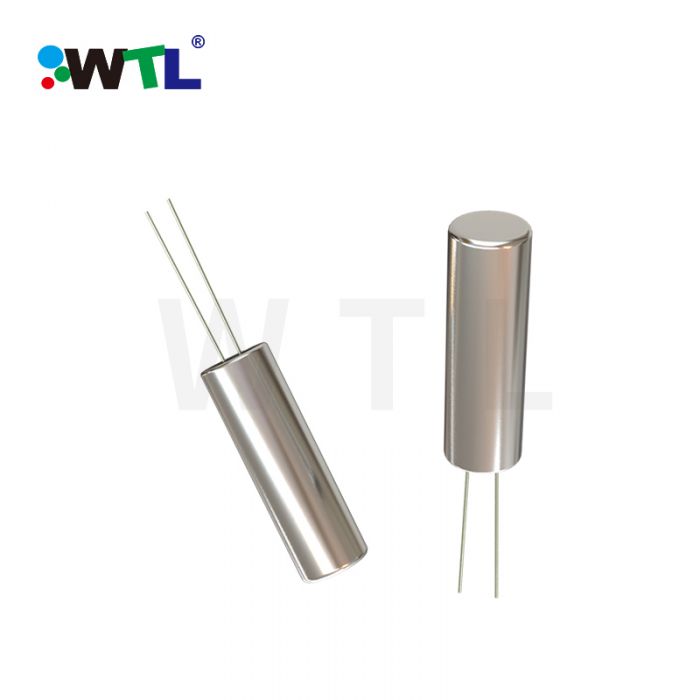

WX2 2*6mm DIP 32.768KHz 12.5pF ±20ppm tuning fork crystal

IN_STOCK
Tuning fork crystal
KEY_FEATURES:
  • FREE_SHIPPING
    FREE_SHIPPING_DES
  • SUPPORT_TIME
    SUPPORT_TIME_DES
  • SAFETY
    SAFETY_DES
  • HOT_OFFERS
    HOT_OFFERS_DES
Series
WX2
Package/Case
DIP2060
Frequency
32.768 KHz
CL
12.5 pF
Frequency Tolerance (25±3℃)
±20 ppm
Operating Temperature
-40+85 ℃

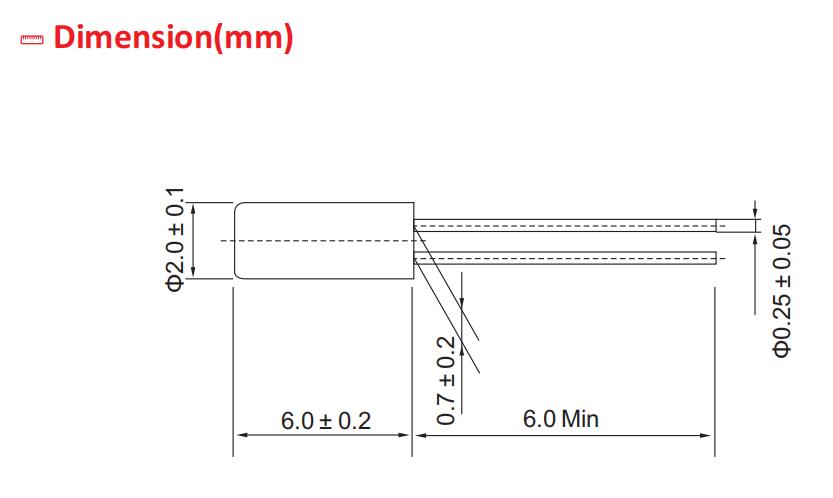

L x W/Size
2.0*6.0 mm
Drive Level
0.1~1 μW
Shunt Capacitance(C0)
1.5 pF
Storage Temperature
-40~+85℃ ℃
Aging
±3.0/±5.0 ppm/year
Lead Quantity
2 Pin
Encapsulation technology
Metal Welded
Package type
Bag
MPQ
3000 pcs
Mounting type
DIP
Pb Free
Yes
Application level
Consumer
Partlife Cycle Code
Active
Material
Quartz Crystal
Insulation Resistance
500 MΩ @ DC100V
MFG
WTL International Limited
Country of Origin
China
Turnover Temperature
25±5 ℃
Temperature coefficient
(-0.034±10%) x 10^-6/°C^2
Features
Small sizeΦ2 x 6mm
A great number of standard frequencies
Higher frequency available and lower equivalent series resistance
The best choice of Clock
RoHS Compliant / Pb Free
