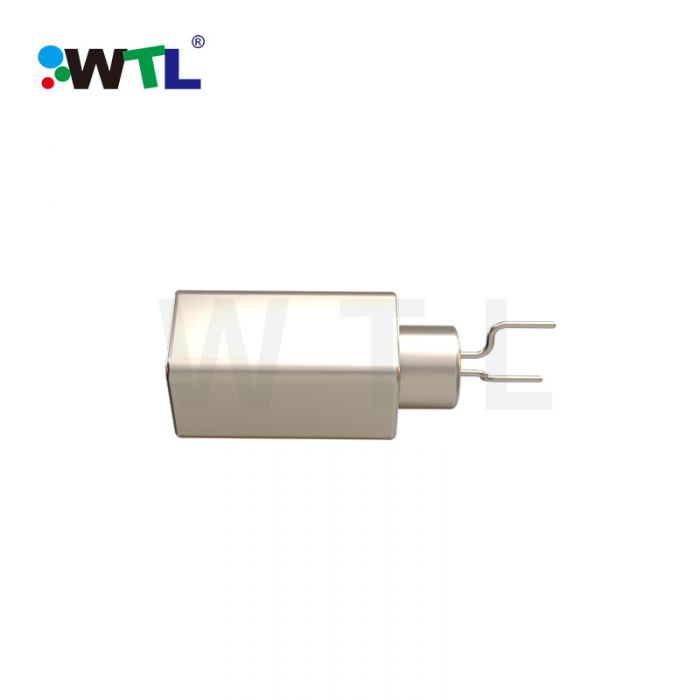

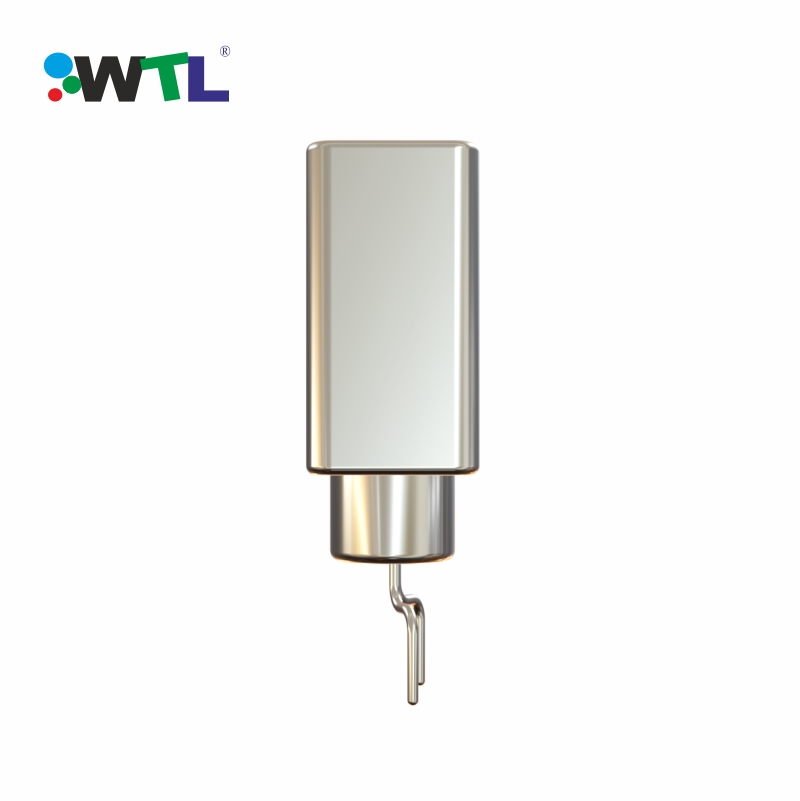

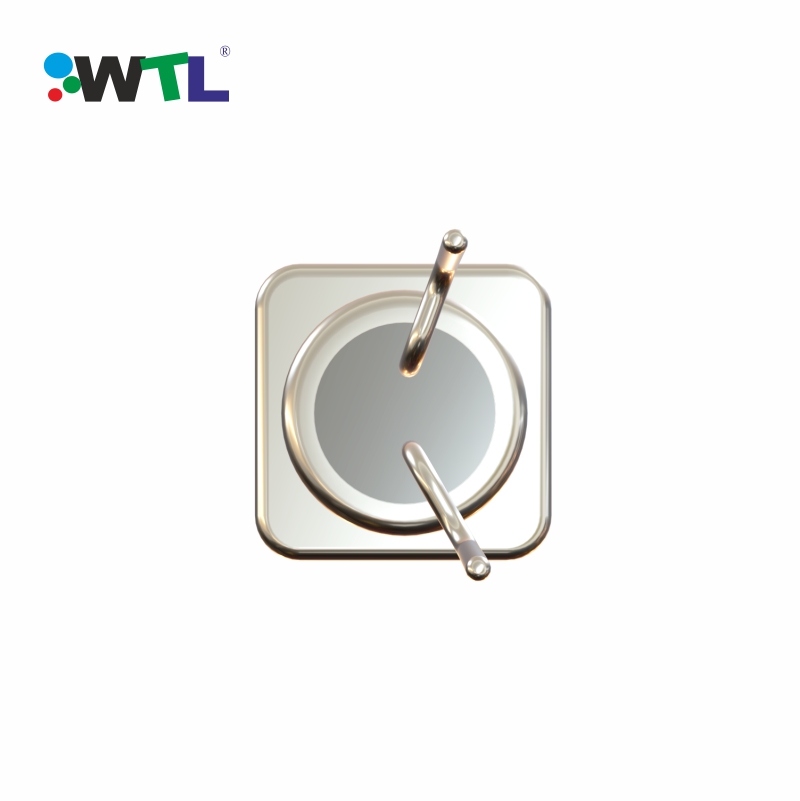

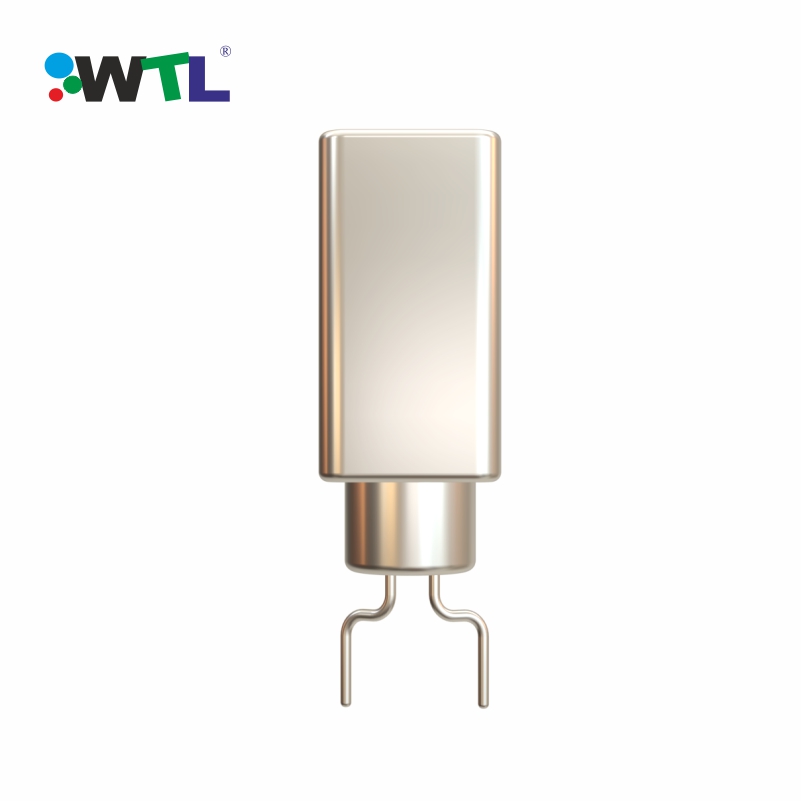

WA4 2*6mm SMD jacket 32.768KHz 12.5pF ±20ppm tuning fork crystal
WA4.pdfSale
¥1.50
IN_STOCK
LADDER_PRICE
-
FREE_SHIPPINGFREE_SHIPPING_DES
-
SUPPORT_TIMESUPPORT_TIME_DES
-
SAFETYSAFETY_DES
-
HOT_OFFERSHOT_OFFERS_DES
Series
WA4
Package/Case
SMD2060
Frequency
32.768 KHz
CL
12.5 pF
Frequency Tolerance （25±3℃）
±20 ppm
Operating Temperature
-40+85 ℃

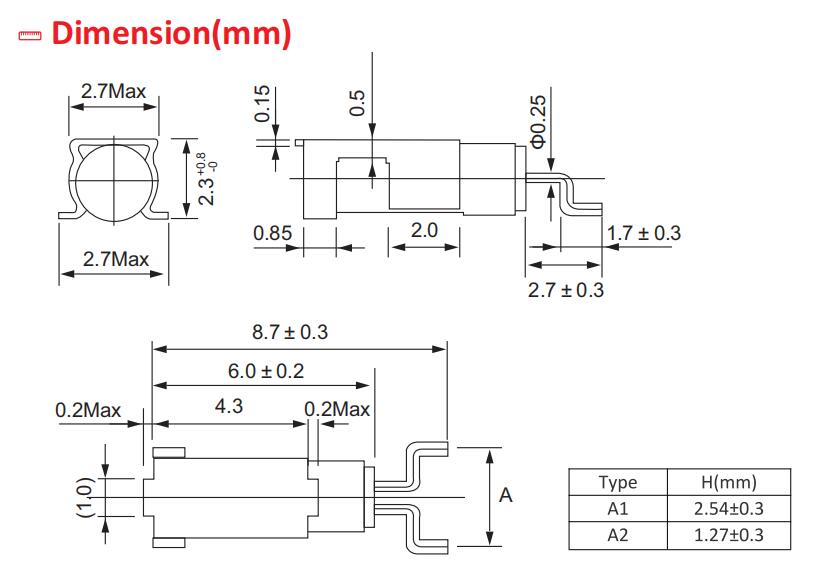

L x W/Size
2.0*6.0 mm
Drive Level
0.1~1 μW
Shunt Capacitance(C0)
1.5 pF
Storage Temperature
-40~+85℃
Aging
±5.0 ppm/year
Lead Quantity
2 Pin
Encapsulation technology
Metal Welded
Package type
Bag
MPQ
3000 pcs
Mounting type
SMT
Pb Free
Yes
Application level
Consumer
Partlife Cycle Code
Active
Material
Quartz Crystal
Insulation Resistance
500 MΩ @ DC100V
MFG
WTL International Limited
Country of Origin
China
Turnover Temperature
25±5 ℃
Temperature coefficient
(-0.030±10%) x 10^-6/°C^2
Features
Small size Φ 2 x 6mm SMD with Jacket
Excellent frequency stability
Designed for automatic mounting and reflow soldering
RoHS Compliant / Pb Free
