TK2 2.5*2.0mm OSC 32.768KHz 1.8V ±25ppm crystal oscillator
WTL TK2.pdfSale
¥3.80
IN_STOCK
LADDER_PRICE
-
FREE_SHIPPINGFREE_SHIPPING_DES
-
SUPPORT_TIMESUPPORT_TIME_DES
-
SAFETYSAFETY_DES
-
HOT_OFFERSHOT_OFFERS_DES
Series
TK2
Package/Case
SMD2520
Frequency
32.768000 KHz
Frequency Tolerance （25±3℃）
±25 ppm
Operating Temperature
-40+85 ℃
Frequency Stability vs.Temperature
±25 ppm

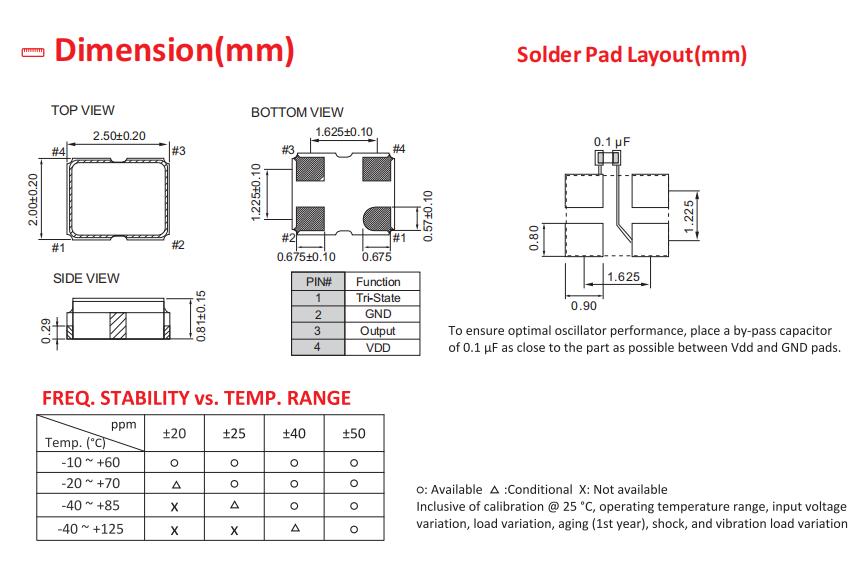

L x W/Size
2.5*2.0 mm
Height
0.81 mm
Supply Voltage
1.8 V
Output type
CMOS
Output Load
15 pF
Storage Temperature
-55~+125 ℃
Current Consumption
63/66/70 uA
Control Function
With Tri-State
Duty Cycle
45/55 %
Drive Ability
Default(datasheet limits)
Output Wave
Square Wave
Aging
±3.0 ppm/year
Lead Quantity
4 Pins
Encapsulation technology
Seam Sealing
Package type
Tape/Reel
MPQ
3000 pcs
Country of Origin
China
MFG
WTL International Limited
Mounting type
SMT
Pb Free
Yes
Application level
Consumer
Partlife Cycle Code
Active
Material
Quartz Crystal
Programmable frequency
32.768 KHz
Special Requirement
no special requirement
Features
Typical 2.5 x 2.0 x 0.81 mm SMD package.
Tight symmetry (45 to 55%) available.
Operation voltage: 1.8V, 2.5V, 3.3V
Tri-state enable/disable
Built-in ASIC enables reduction of current consumption
