TC5 5.0*3.2mm OSC 25.000MHz 3.3V ±30ppm crystal oscillator
WTL TC5.pdfSale
¥3.40
IN_STOCK
LADDER_PRICE
-
FREE_SHIPPINGFREE_SHIPPING_DES
-
SUPPORT_TIMESUPPORT_TIME_DES
-
SAFETYSAFETY_DES
-
HOT_OFFERSHOT_OFFERS_DES
Series
TC5
Package/Case
SMD5032
Frequency
25.000000 MHz
Frequency Tolerance （25±3℃）
±30 ppm
Operating Temperature
-40+85 ℃
Frequency Stability vs.Temperature
±30 ppm

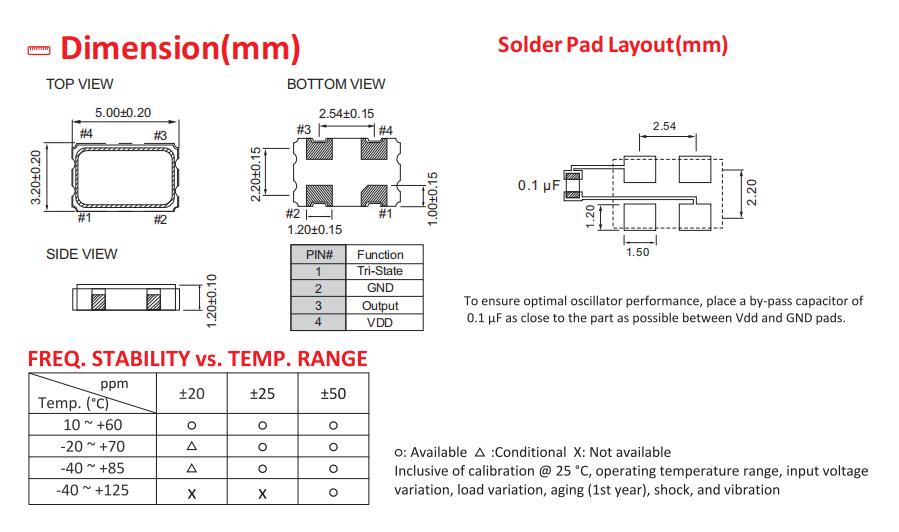

L x W/Size
5.0*3.2 mm
Height
1.2 mm
Supply Voltage
3.3 V
Output type
CMOS
Output Load
15 pF
Storage Temperature
-55~+125 ℃
Current Consumption
1/8/10/20/30/35/40/45 mA
Control Function
With Tri-State
Duty Cycle
45/55 %
Drive Ability
Default(datasheet limits)
Output Wave
Square Wave
Aging
±3.0 ppm/year
Lead Quantity
4 Pin
Encapsulation technology
Seam Sealing
Package type
Tape/Reel
MPQ
1000 pcs
Country of Origin
China
MFG
WTL International Limited
Mounting type
SMT
Pb Free
Yes
Application level
Consumer
Partlife Cycle Code
Active
Material
Quartz Crystal
Programmable frequency
0.0137~160 MHz
Special Requirement
no special requirement
Features
Typical 5.0 x 3.2 x 1.2mm ceramic SMD package
Tight symmetry (45 to 55%) available
Operation voltage: 1.8V, 2.5V, 3.3V
Realize the standby function with Tri-State RoHS compliant/Pb-free
