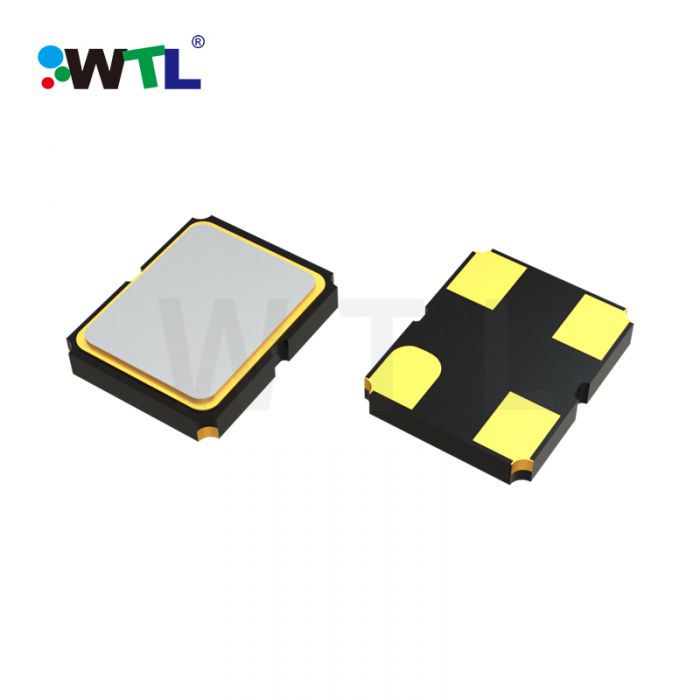

TB2 2.5*2.0mm 133.000MHz 3.3V ±30ppm FASTXO crystal oscillator
WTL TB2.pdfSale
¥7.00
IN_STOCK
LADDER_PRICE
-
FREE_SHIPPINGFREE_SHIPPING_DES
-
SUPPORT_TIMESUPPORT_TIME_DES
-
SAFETYSAFETY_DES
-
HOT_OFFERSHOT_OFFERS_DES
Series
TB2
Package/Case
SMD2520
Frequency
133.000000 MHz
Frequency Tolerance （25±3℃）
@all condition ppm
Operating Temperature
-40+85 ℃
Frequency Stability vs.Temperature
±30 ppm
L x W/Size
2.5*2.0 mm
Height
0.81 mm
Supply Voltage
3.3 V
Output Load
15 pF
Storage Temperature
-55~+125 ℃
Current Consumption
20/28/30 mA
Control Function
With Tri-State
Duty Cycle
45/55 %
Drive Ability
Default(datasheet limits)
Output Wave
CMOS
Aging
±3.0 ppm/year
Lead Quantity
4 Pin
Encapsulation technology
Seam Sealing
Package type
Tape/Reel
MPQ
3000 pcs
Country of Origin
China
MFG
WTL International Limited
Mounting type
SMT
Pb Free
Yes
Application level
Consumer
Partlife Cycle Code
Active
Material
Quartz Crystal
Programmable frequency
1~200 MHz
Special Requirement
No
Features
Typical 2.5 x 2.0 x 0.81 mm ceramic SMD package.
Operation supply voltage: 1.8V, 2.5V and 3.3V
FASTXO series, Fast delivery at any frequency
Tri-State Enable/Disable
Frequency Stability ±25ppm over -40 °C to 85 °C
RoHS compliant/Pb-free
