OLH 25.4*25.4mm DIP 10.000MHz 5V ±0.1ppm OCXO
OLH.pdfSale
¥360.00
IN_STOCK
LADDER_PRICE
-
FREE_SHIPPINGFREE_SHIPPING_DES
-
SUPPORT_TIMESUPPORT_TIME_DES
-
SAFETYSAFETY_DES
-
HOT_OFFERSHOT_OFFERS_DES
Series
OLH
Package/Case
DIP2525
Frequency
10.000000 MHz
Supply Voltage
5.0 V
Current Consumption
800 or 1000 mA
Initial stability △25℃
±1.0 ppm
△F vs △T
±3 ppb
△F vs △V
±0.5 ppb
△F vs △CL
±0.5 ppb
Aging
±50 ppb/year
Aging/day
±0.5 ppb
Output Wave
LVTTL
Voltage control
Yes
Control Voltage
0 to 5 V
Output Load
15 pF
Phase Noise
-158 to -90 dBc/Hz

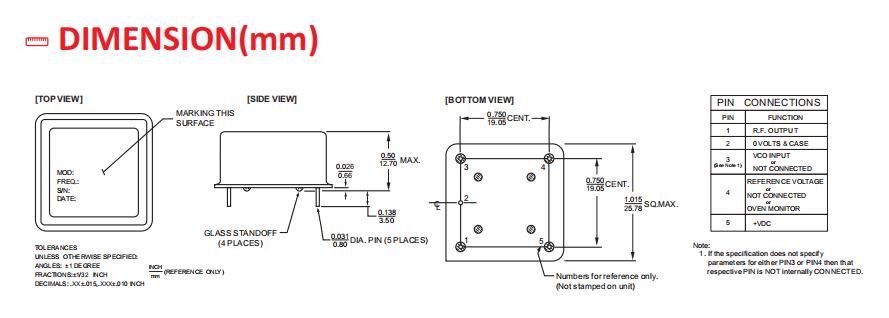

L x W/Size
25.4*25.4 mm
Height
12.7 mm
Storage Temperature
-55~+125 ℃
Duty Cycle
45 to 55 %
Lead Quantity
5 Pin
Package type
box
MPQ
200 pcs
Encapsulation technology
OCXO
Mounting type
DIP
Application level
Consumer
Output Level
0.4 to 2.4 V
Pb Free
Yes
MFG
WTL International Limited
Country of Origin
China
Special Requirement
No
Features
Typical 25.4 x25.4 x 12.7 mm
Hermetically Sealed DIP Package
Low power consumption and high reliability
SC Cut Crystal
