OSH 36.3*27.2mm DIP 10.000MHz 5V ±3PPB OCXO
OSH.pdfSale
¥360.00
IN_STOCK
LADDER_PRICE
-
FREE_SHIPPINGFREE_SHIPPING_DES
-
SUPPORT_TIMESUPPORT_TIME_DES
-
SAFETYSAFETY_DES
-
HOT_OFFERSHOT_OFFERS_DES
Series
OSH
Package/Case
DIP3627
Frequency
10.000000 MHz
Supply Voltage
5.0 V
Current Consumption
850 or 1000 mA
Initial stability △25℃
±0.1 ppm
△F vs △T
±3 ppb
△F vs △V
±0.5 ppb
△F vs △CL
±0.5 ppb
Aging
±50 ppb/year
Aging/day
±0.5 ppb
Output Wave
CMOS/HCMOS（方波）
Voltage control
Yes
Output Load
15 pF
Phase Noise
-156 to -120 dBc/Hz

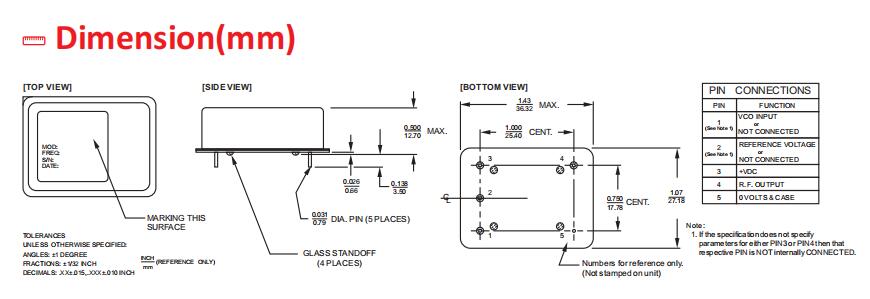

L x W/Size
36.3*27.2 mm
Height
12.7 mm
Storage Temperature
-55~+125 ℃
Duty Cycle
45 to 55 %
Lead Quantity
5 Pin
Package type
box
MPQ
200 pcs
Encapsulation technology
OCXO
Mounting type
DIP
Application level
Consumer
Pb Free
Yes
MFG
WTL International Limited
Country of Origin
China
Special Requirement
No
Output Level
0.4 to 2.6 V
Features
Typical 36.3 x27.2 x 12.7 mm.
SC Cut crystal
