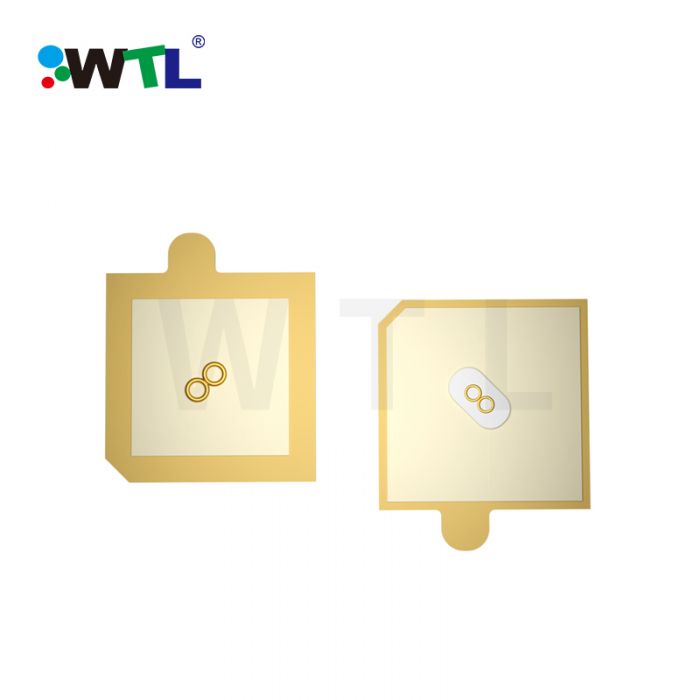

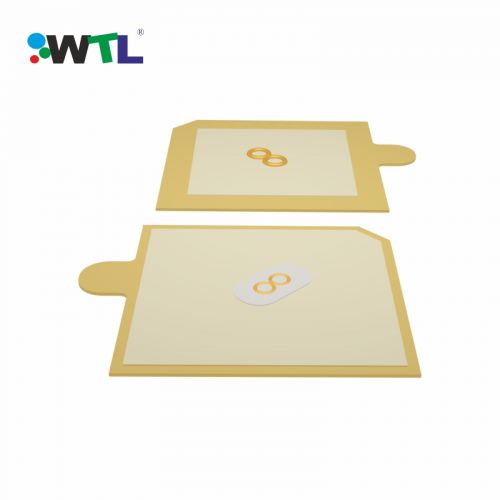

DA1 18*18*4mm Antenna 1575.42MHz ±3MHz dielectric antenna
DA1.pdfSale
¥10.00
IN_STOCK
LADDER_PRICE
-
FREE_SHIPPINGFREE_SHIPPING_DES
-
SUPPORT_TIMESUPPORT_TIME_DES
-
SAFETYSAFETY_DES
-
HOT_OFFERSHOT_OFFERS_DES
Package/Case
SMD
Series
DA1
Application
GPS
L x W/Size
1818
-10dB Bandwidth min
4 to 40 MHz
VSWR (in BW) max
2.0
Ground Plane
10*10 to 70*70 mm
Frequency Tolerance （25±3℃）
No
Features
Various Applications: GPS,BD+GPS, GPS+COMPASS and Multimode
Various sizes: 10x10mm to 35.5x 35.5mm
High quality dielectric ceramics

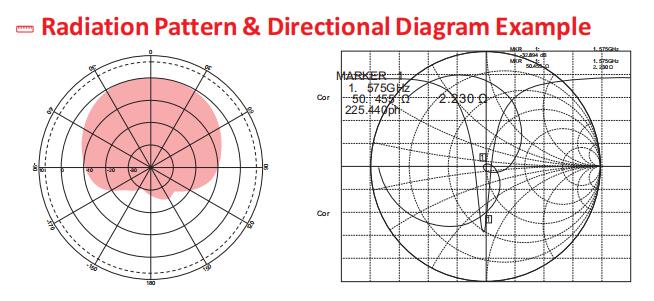

Excellent Radiation Pattern
