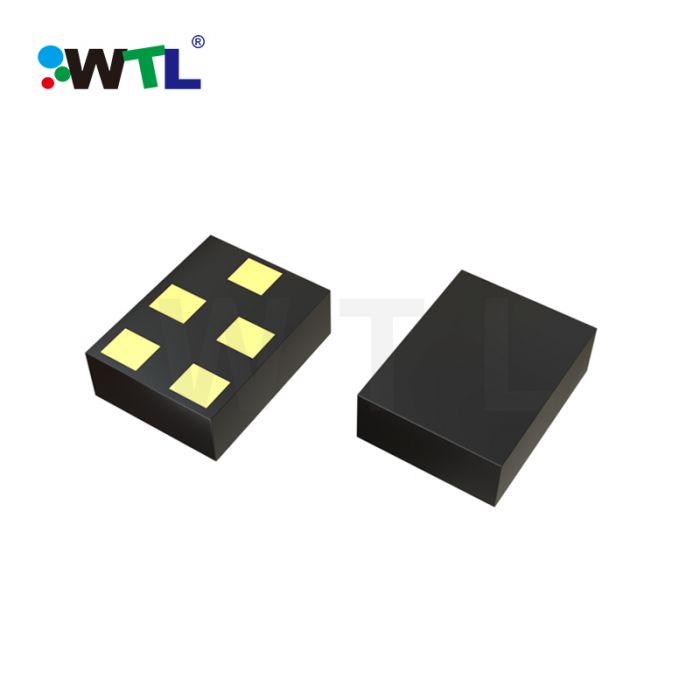

SF0 1.1*0.9mm SMD 1176.450MHz 1.0dB 40MHz Saw filter
SF0.pdfSale
¥1.60
IN_STOCK
LADDER_PRICE
-
FREE_SHIPPINGFREE_SHIPPING_DES
-
SUPPORT_TIMESUPPORT_TIME_DES
-
SAFETYSAFETY_DES
-
HOT_OFFERSHOT_OFFERS_DES
Series
SF0
Package/Case
SMD1109
Frequency
1176.450000 MHz
Insertion Loss
1.0 dB
Special Requirement
No
Storage Temperature
-40~+85 ℃

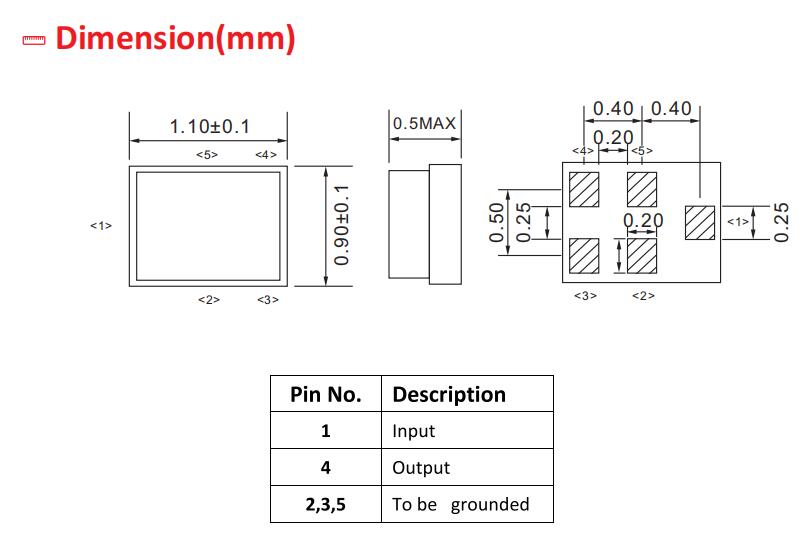

L x W/Size
1.1*0.9 mm
Height
0.5 Max mm
Package type
Tape/Reel
MPQ
3000 pcs
Mounting type
SMT
Application level
Consumer
Partlife Cycle Code
Active
MFG
WTL International Limited
Country of Origin
China
Input VSWR(ANT port)
2.0 dB
Features
Small size 1.1x 0.9, Ultra thin , thickness 0.5mm
High stability and reliability with good performance and no adjustment
Narrow and sharp pass band characteristics
Low insertion loss and deep stop band attenuation for interference Low – loss SAW filter for GPS
RoHS Compliant
